Chapter 5
VGA Port
The Spartan ? -3 FPGA Starter Kit board includes a VGA display port and DB15 connector,
indicated as 5 in Figure 1-2 . Connect this port directly to most PC monitors or flat-panel
LCD displays using a standard monitor cable.
Pin 5
Pin 10
Pin 15
DB15 VGA Connector
Pin 1
Pin 6
Pin 11
DB15
Connector
(front view)
1
Red
270 Ω
R
(R12)
2
3
6
7
11
12
Green
Blue
270 Ω
270 Ω
G
B
(T12)
(R11)
8
13
Horizontal Sync
HS (R9)
4
9
14
Vertical Sync
VS
(T10)
5
10
15
(xx) = FPGA pin number
GND

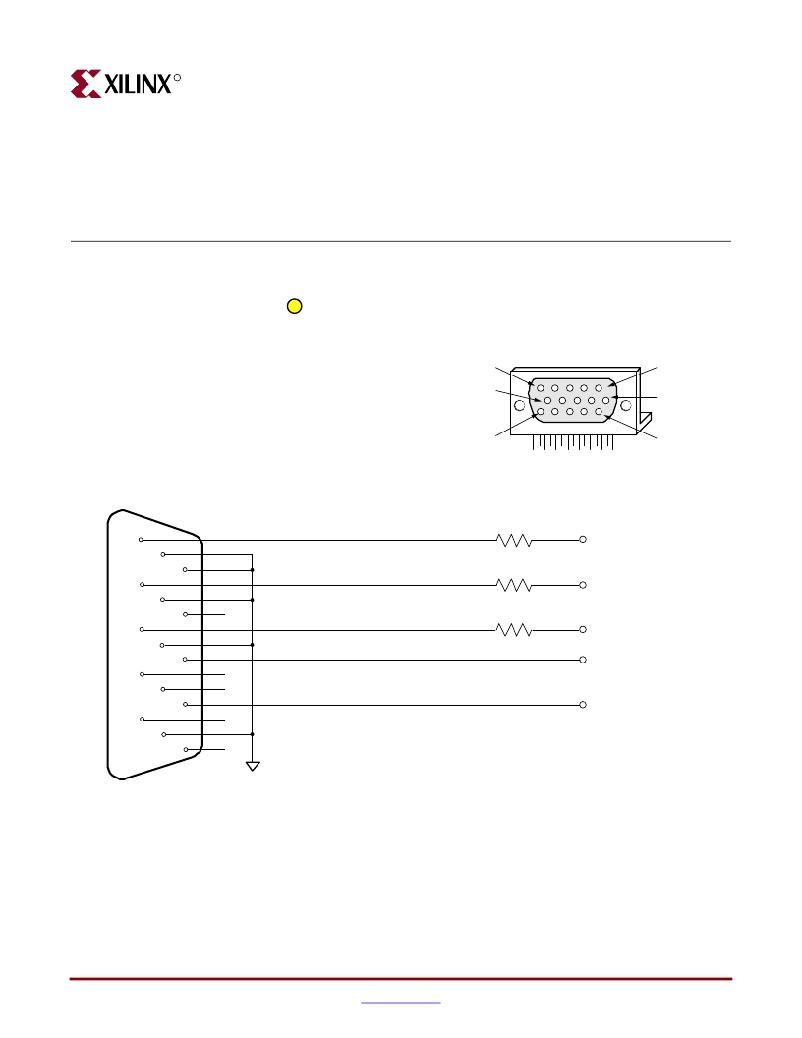

Figure 5-1:
VGA Connections from Spartan-3 Starter Kit Board
UG130_c5_01_042604
As shown in Figure 5-1 , the Spartan-3 FPGA controls five VGA signals: Red (R), Green (G),
Blue (B), Horizontal Sync (HS), and Vertical Sync (VS), all available on the VGA connector.
The FPGA pins that drive the VGA port appear in Table 5-1 . A detailed schematic is in
Figure A-7 .
Spartan-3 FPGA Starter Kit Board User Guide
UG130 (v1.2) June 20, 2008
www.xilinx.com
21
